Welcome to the ohyay support hub, where you'll find guides and documentation to help you start building in ohyay as quickly as possible. Let's jump right in!

Get Started

Sources are a group of elements that help manipulate data inside ohyay. They allow building complex spaces that respond to changes in a complex set of data.

As a motivating example, consider a quiz show. The show has a long list of questions. Each question may require a different room layout, e.g. a text-based question, an image-based question, or a video-based question. One way to implement this would be to have three buttons, where each button changes the layout of the room. The host of the show could click on these buttons to change the layout based on the question. This is stressful and error prone. Using data sources, one can design a room that responds automatically based on the active question.

Lists

Lists represent a series of data. A List Source can be added to a room using the Element -> Insert Source -> List Source menu option.

Data can be added to the list by using the List Items property. The format of this property is currently a JSON array. Easier methods of data entry will be available in the future.

If using the iframe API, the contents of the list can be accessed / set using the elements property.

Accessing List Data

A List Source isn't useful without a way to access the data. One way to access list data is to use a List Item element. This element has two main components:

  1. The list to read from. The property is called Source Element.
  2. The position of the list to read from. The property is called Item Index

Example

Create a List Source with the following List Items:

[
  "Which came first, the chicken or the egg?",
  "How much wood can a wood chuck chuck?"
]

The list containing the questions

Next, create the following elements:

  1. A Text Element to display the question.
  2. A List Item element to read the current question.
  3. A Button Element to display the question
  4. A Button Element to move to the next question.

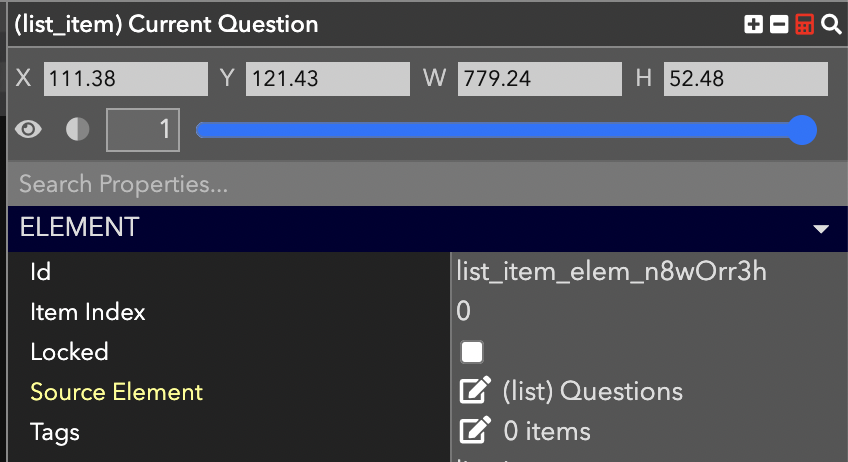

The list item for reading the current question from the list. Item Index 0 means the first element.

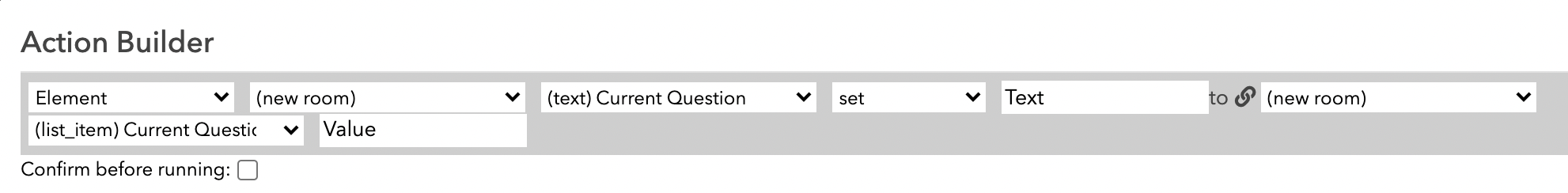

The button configuration for the button that displays the question.

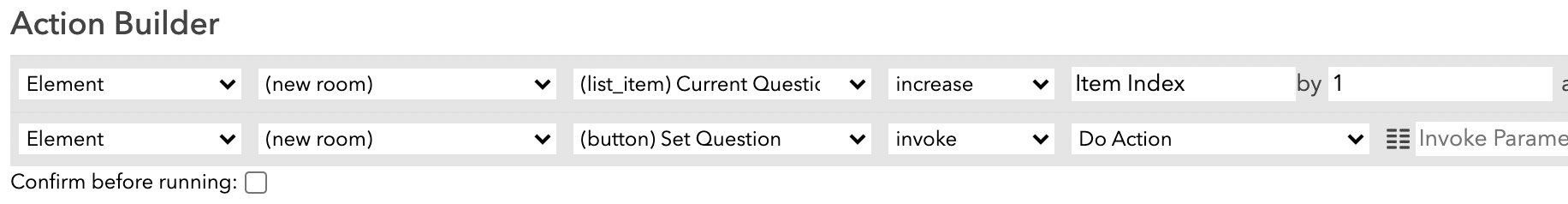

The button configuration for showing the next question.

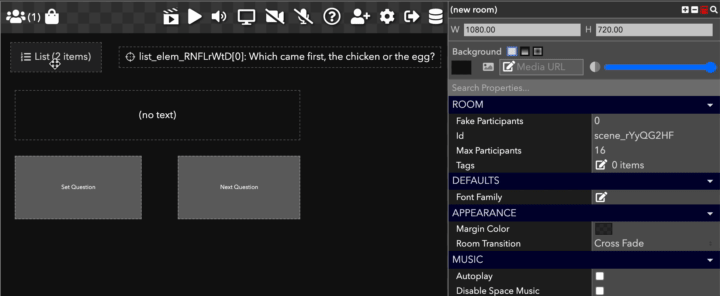

A gif showing the total configuration
